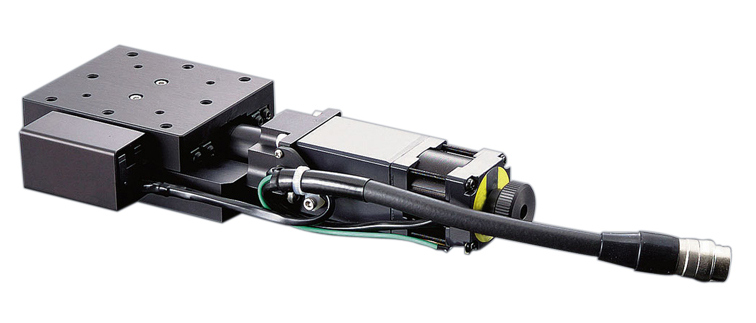

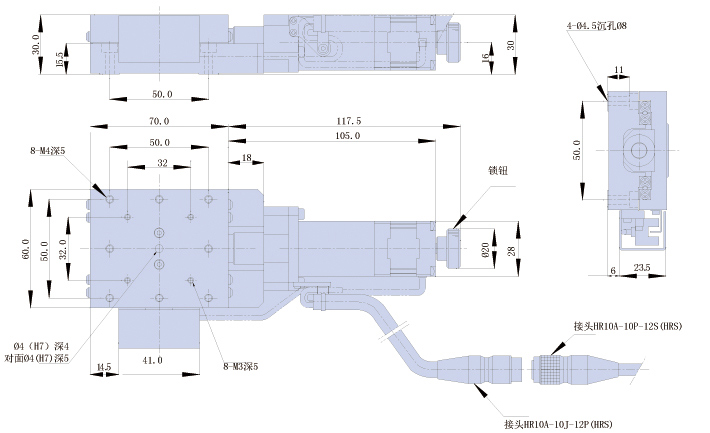

WNKS101-30LHD


Model
WNKS101-30L
WNKS101-30LMS
WNKS101-30LHD
Different position of sensor
WNKS101-30R
WNKS101-30RMS
WNKS101-30RHD
Machinery specification
Travel range
30mm
Platform
60×70mm
Feed screw
Ball screw￠8 lead 1
Guide
Cross roller bearing
Stage material
Aluminium-black chromium anodized
Weight
0.56kg
0.74kg
0.70kg
Accuracy specification
Resolution
2u m/pulse

1u m/pulse 0.05u m/pulse(MS1/20※)
(※when using MS driver)
0.02u m/pulse
Max velocity
20mm/sec
10mm/sec
0.2mm/sec
Positional accuracy of the same direction
Within 5u m
Repeated positioning accuracy
Within ±0.3u m
Max load capacity
5.0kgf【49N】
Moment  rigidity
Pitching 0.15/Yawing 0.08/  Rolling 0.07〔〞/N·cm〕
Lost motion
Within 1u m
Backlash
Within 0.5u m
Motion straightness
Within 3u m
Degree of parallelism
Within 30u m
Movement parallelism
Within 10u m
Pitching/ Yawing
Within 25〞/within 20〞
Sensor
Limit switch
has
Origin sensor
has
Proximity origin sensor
has


Price Enquiry
