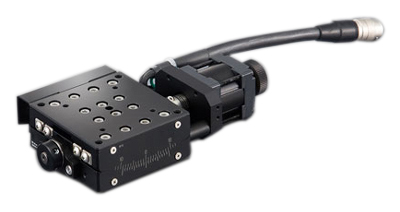

WNKS501-60
Search Product:
WNKS501-60
Axis number
Single axis

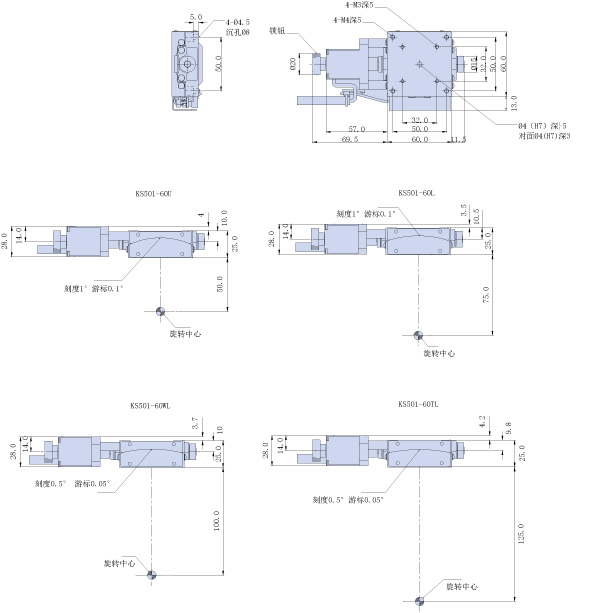

Model
WNKS501-60U
WNKS501-60L
WNKS01-60WL
WNKS501-60TL

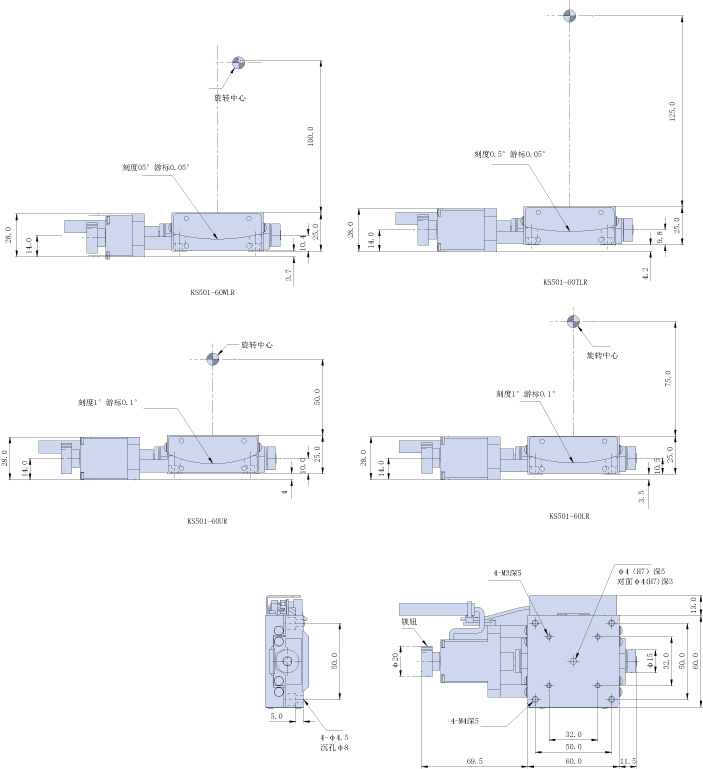

Different position of sensor
WNKS501-60UR
WNKS501-60LR
WNKS501-60WLRR
WNKS501-60TLR
Machinery specification
Travel range
±10°
±10°
±6°
±5°
Platform
60×60MM
Travel mechanism(reduction ratio)
Turbine（1/160）
Turbine（1/225）
Turbine（1/292）
Turbine（1/360）
Guide
Cross roller bearing
Stage material
Aluminium-black chromium anodized
Weight
0.5kg
Dimensional tolerance
Stage height
25±0.2mm
Rotation center height
50±0.2mm
75±0.2mm
100±0.2mm
125±0.2mm
Rotation center vibration accuracy
Within 0.01mm
Accuracy specification
Resolution
0.0045°/ pulse
0.0032°/ pulse
0.0025°/ pulse
0.0020°/
pulse
Max speed
22.5°/sec〔5kHz〕
16°/sec〔5kHz〕
12.5°/sec〔5kHz〕
10°/sec〔5kHz〕
Repeated accuracy
Within ±0.003
Max load capacity
5kgf【49N】
Motion rigidity
Pitching 0.30/ Yawing 0.10/ Rolling 0.11〔〞N·cm〕
Lost motion
Within 0.01°
Sensor
Limit switch
has
Origin sensor
has
Proximity origin sensor
------
©
